Wire Slab Bolster-Slab Bolster Uppers-1" to 6" Height, 5 Feet Long-Plain Steel, Galvanized, Epoxy Coated Finish

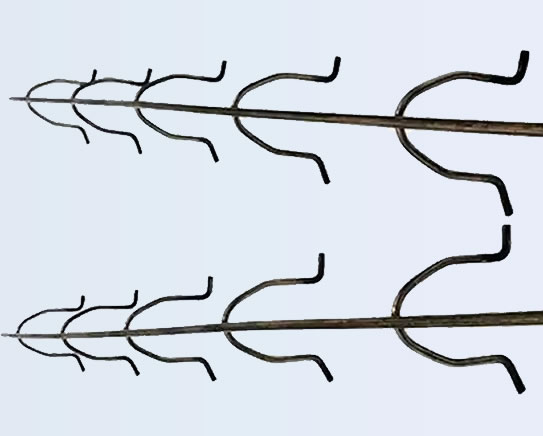

Metal Slab Bolster is a Continuous Bar Support to maintain accurate rebar and mesh positioning above formwork in concrete slabs. Standard: ASTM A82 / A1064 (for wire), ASTM A123 (for galvanizing).
Material: Galvanized steel; black annealed steel
Function: Supports continuous rows of reinforcement mesh or rebar in horizontal concrete pours.
Standard Type Slab Bolster:
Flat-based support for bottom-layer reinforcement.
Slab Bolster Upper:
Raised legs arched shape for supporting upper layer of reinforcing steel bar.
Beam Bolster:
Designed with wider base for wide rabar spacing in beams and slabs.
Plastic-tipped Slab Bolster:
Anti rust for architectural surfaces
Epoxy/Galvanized Coated Slab Bolster:
For marine use.
5 Inch High Slab Bolster Epoxy Coated
Material: Low carbon steel wire
Specification:
Height: 5 inch
Bolster Length: 5 ft
Finish: Epoxy coated

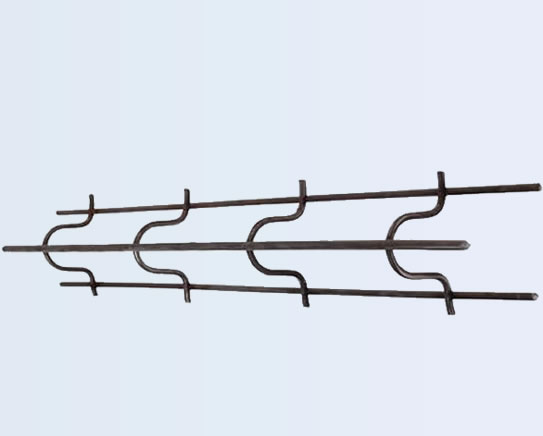

1 inch High Slab Bolster Upper
Material: Low carbon steel wire
Specification:
Height: 1 inch
Spacing of legs: 5 inch
Bolster Length: 5 feet
Finish: Plain steel, galvanized, epoxy coated.
2 inch Slab Bolster Upper
Material: Low carbon steel wire
Specification:
Height: 2 inch
Bolster Length: 5 feet
Finish: Plain steel, galvanized, epoxy coated.
3 inch Slab Bolster Upper
Material: Low carbon steel wire
Specification:
Height: 3 inch
Bolster Length: 5 feet
Finish: Galvanized, epoxy coated (optional).
Slab Bolster Upper 4" Height Galvanized
Material: Low carbon steel wire
Specification:
Height: 4 inch
Bolster Length: 5 ft
Wire Diameter: 4.0mm
Finish: Galvanized, epoxy coated (optional)
Slab Bolster Upper 6 " Height Galvanized
Material: Low carbon steel wire
Specification:
Height: 4 inch
Bolster Length: 5 ft
Wire Diameter: 5 mm
Finish: Galvanized, epoxy coated (optional).
Standard Specification of Metal Slab Bolsters Plastic Tipped, or Dipped
| DESCRPTION | SIZE | W(KG) |
| SLAB BOLSTER TIPPED | SBT3/4"X5' | 0.395 |
| SLAB BOLSTER TIPPED | SBT1"X5' | 0.405 |
| SLAB BOLSTER TIPPED | SBT1-1/2"X5' | 0.448 |
| SLAB BOLSTER TIPPED | SBT2"X5' | 0.497 |
| SLAB BOLSTER TIPPED | SBT2-1/2"X5' | 0.555 |
| SLAB BOLSTER TIPPED | SBT3"X5' | 0.59 |
| SLAB BOLSTER TIPPED | SBT3-1/2"X5' | 0.625 |
| SLAB BOLSTER TIPPED | SBT4"X5' | 0.683 |
| SLAB BOLSTER TIPPED | SBT4-1/2"X5' | 0.73 |
| SLAB BOLSTER TIPPED | SBT5"X5' | 0.776 |
| SLAB BOLSTER UPPER | SBU3/4" | 0.74 |
| SLAB BOLSTER UPPER | SBU1"X5' | 0.785 |
| SLAB BOLSTER UPPER | SBU1-1/2"X5' | 0.835 |
| SLAB BOLSTER UPPER | SBU2"X5' | 0.865 |
| SLAB BOLSTER UPPER | SBU2-1/2"X5' | 0.9 |
| SLAB BOLSTER UPPER | SBU3"X5' | 0.965 |
| SLAB BOLSTER UPPER | SBU3-1/2 | 1.006 |
| SLAB BOLSTER UPPER | SBU4" | 1.05 |
| SLAB BOLSTER UPPER | SBU5" | 1.14 |
| SLAB BOLSTER UPPER | SBU6" | 1.22 |
| SLAB BOLSTER DIPPED | SB3/4"X5' | 0.395 |
| SLAB BOLSTER DIPPED | SB1"X5' | 0.405 |
| SLAB BOLSTER DIPPED | SB1-1/2"X5' | 0.448 |
| SLAB BOLSTER DIPPED | SB2"X5' | 0.497 |
| SLAB BOLSTER DIPPED | SB2-1/2"X5' | 0.555 |
| SLAB BOLSTER DIPPED | SB3"X5' | 0.59 |
| SLAB BOLSTER DIPPED | SB3-1/2"X5' | 0.626 |
| SLAB BOLSTER DIPPED | SB4"X5' | 0.662 |
