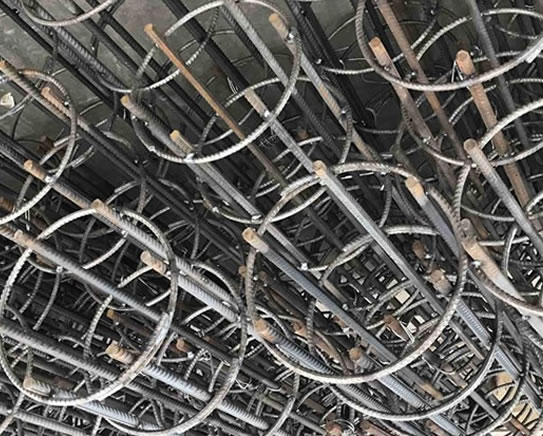

Reinforcement Rebar Cages

Rebar cage is an important type of welded reinforcing mesh deformed in pile cages or pipe shapes. Concreate supplies welded wire reinforcement cages, concrete cages and pile cages for various big-span concrete constructions. Reinforcement rebar cage is made with adjustable spacing by automatic spot welding machine. Various opening and length are available for options.

Finishes: Plain carbon black, galvanized, hot dipped steel

Structures: Welded into spiral or circular cages

Material: Hard drawn steel wire, cold drawn, smooth surface.

Standards:
ASTM A1064 (USA)
BS 4482 (UK)
EN 10080 (EU)

Products

Welded Reinforcing Piling Cage Supply to European Countries

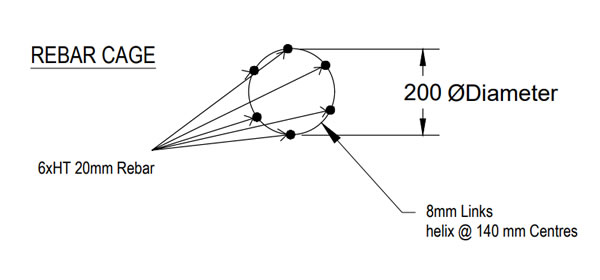

DETAIL DRAWING
Specification:
HT Rebar: 20 mm
Link wire: 8 mm
Cage OD: 200 mm

Steel Reinforcement Cages

Mesh Cage Welded Supply to Australia for prefabrication of reinforcement cages for concrete segments in tunnels

Design of the rebar schedule and cage layout:
INCLINED PRESSURE TUNNEL
FACS SEGMENTAL LINING
STANDARD SEGMENTS REINFORCEMENT

Technical specification of steel reinforcement cage:

Items&Model	1250	1500	2000	2500
Max. cage dia.(mm)	1250	1500	2000	2500
Min. cage dia.(mm)	300	400	500	500
Standard cage length(mm)	12000	12000	12000	12000
Max cage length(mm)	27000	27000	27000	27000
Line rebar dia.(mm)	12-32	12-32	12-32	12-32
Spiral wire dia.(mm)	5-16	5-16	5-16	5-16
Spiral wire space(mm)	50-500	50-500	50-500	50-500
Max. cage weight(KG)	5000	6500	7500	8500
Welding method	Automatic 20-45 spots/minute
Weight(KG)	17000	18000	19200	21500

Application of Reinforcement Rebar Cage:

In the bridge construction, high-speed railway construction and other fields.

Need more information about Concreate Reinforcing Products? Contact us now.
