Canal Reinforcing Welded Wire Mesh Mats
Canal reinforcing welded mats are made from welded wire fabrics designed to reinforce concrete canal linings. The wire can be deformed or smooth steel wires.
Common canal reinforcing mesh specifications:
Flat welded wire mesh fabric
Mesh openings: 100 mm × 100 mm, 150 mm × 150 mm, 67 mm × 25.4 mm
Wire forms: Ribbed, smooth, crimped
Material: Low carbon steel, galvanized steel, black steel

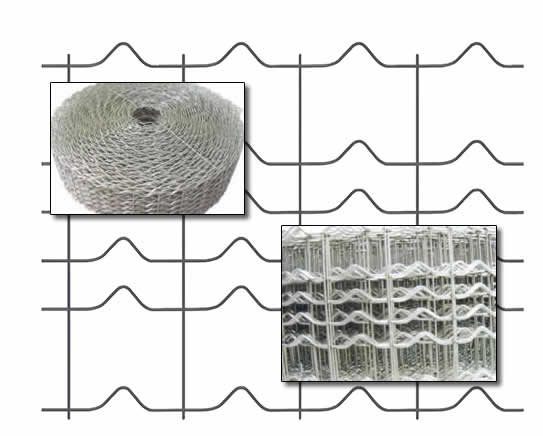

Concrete Weight Coating Welded Mesh for Canal Pipeline Reinforcing
2.5mm x 180 mm Low Carbon Steel Mesh Welded Galvanized for Wrapping to Cylinder
Specification can be customized.
Mesh Width: 180 mm
Wire Diameter: 2.5 mm
Mesh: 67mm ×25.4 mm (2 inch x 1inch)
Wire Material: Low Carbon Steel
Surface Treatment: Galvanized hot-dip for marine use
Welding Standard ASTM A185 (Welded Wire Fabric for Concrete)
Wire Standard ASTM A82 (Cold Drawn Steel Wire for Reinforcement)
Application: For weight-coated canals.

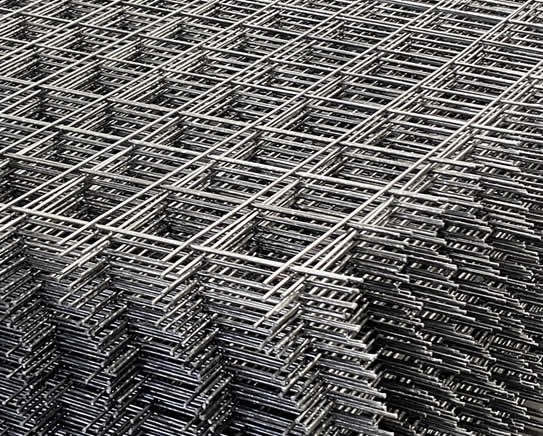

Canal Reinforcing Welded Mesh Mats for Structual Reinforcement and Concrete Lining
50 mm Mesh x 6.0mm HDG Galvanized Welded Mats for Concrete Lining in Canal Projects
Specification can be customized.
Wire Diameter: 6.0 mm
Mesh Apertures: 50×50 mm, 75×25 mm
Width: 200 mm to 2400 mm wide
Form: Flat panels
Surface Treatments:
Hot-dip galvanized (Zn coating 100–300 g/m²)
Epoxy or fusion bonded coating
Marine-grade stainless steel
Use: Structural base reinforcement, heavy concrete lining
